1. Introduction

"Cyberspace. A consensual hallucination experienced daily by billions of legitimate operators, in every nation, by children being taught mathematical concepts ... A graphic representation of data abstracted from the banks of every computer in the human system. Unthinkable complexity. Lines of light ranged in the nonspace of the mind, clusters and constellations of data. Like city lights, receding ...."

[Gibson, Neuromancer]
The PSIBER Space Deck is a programming tool that lets you graphically display, manipulate, and navigate the many PostScript data structures, programs, and processes living in the virtual memory space of NeWS.

The Network extensible Window System (NeWS) is a multitasking object oriented PostScript programming environment. NeWS programs and data structures make up the window system kernel, the user interface toolkit, and even entire applications.

The PSIBER Space Deck is one such application, written entirely in PostScript, the result of an experiment in using a graphical programming environment to construct an interactive visual user interface to itself.

It displays views of structured data objects in overlapping windows that can be moved around on the screen, and manipulated with the mouse: you can copy and paste data structures from place to place, execute them, edit them, open up compound objects to see their internal structure, adjust the scale to shrink or magnify parts of the display, and pop up menus of other useful commands. Deep or complex data structures can be more easily grasped by applying various views to them.

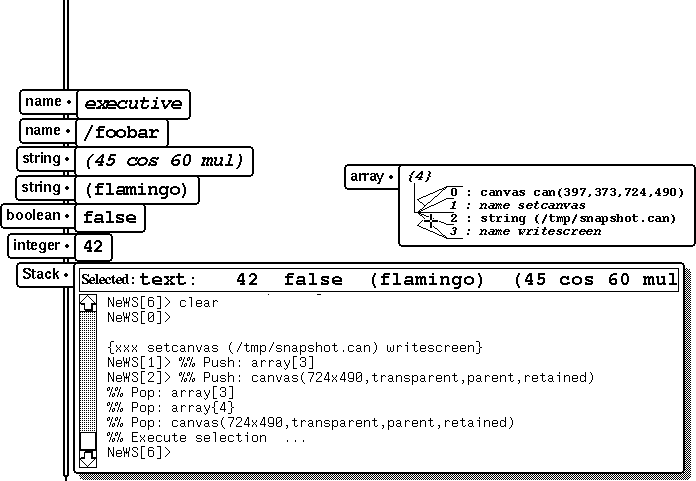

Figure 1, Simple Objects.

There is a text window onto a NeWS process, a PostScript interpreter with which you can interact (as with an "executive"). PostScript is a stack based language, so the window has a spike sticking up out of it, representing the process's operand stack. Objects on the process's stack are displayed in windows with their tabs pinned on the spike. (See figure 1) You can feed PostScript expressions to the interpreter by typing them with the keyboard, or pointing and clicking at them with the mouse, and the stack display will be dynamically updated to show the results.

Not only can you examine and manipulate the objects on the stack, but you can also manipulate the stack directly with the mouse. You can drag the objects up and down the spike to change their order on the stack, and drag them on and off the spike to push and pop them; you can take objects off the spike and set them aside to refer to later, or close them into icons so they don't take up as much screen space.

NeWS processes running in the same window server can be debugged using the existing NeWS debug commands in harmony with the graphical stack and object display.

The PSIBER Space Deck can be used as a hands on way to learn about programming in PostScript and NeWS. You can try out examples from cookbooks and manuals, and explore and enrich your understanding of the environment with the help of the interactive data structure display.
